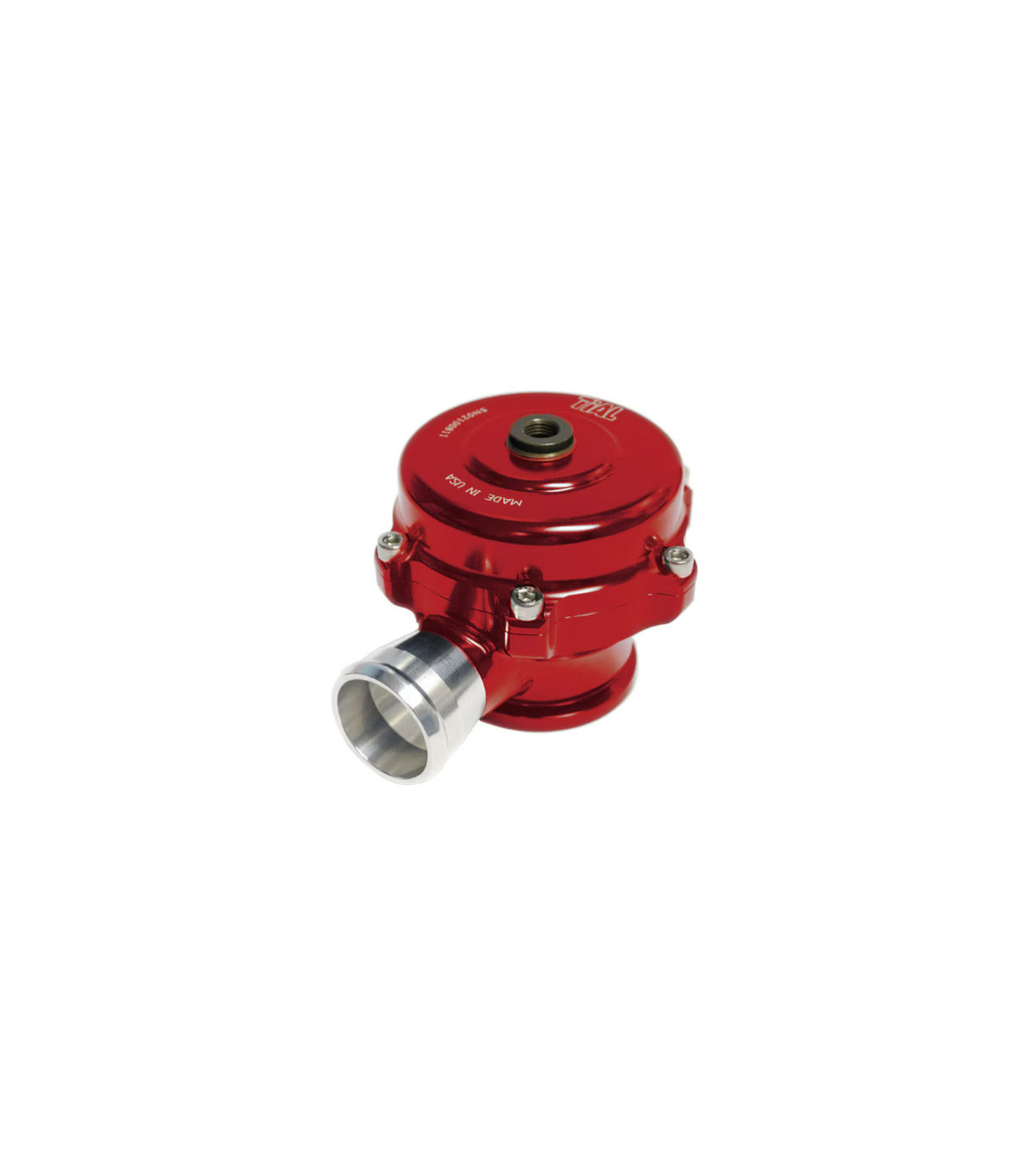

TiAL Sport QR BOV 10 PSI Spring
Specs & Features:
- 25.4mm (1") Recirculating Outlet Flange
- Uses the standard TiAL V-band flange and can be converted into a standard Q BOV by swapping the bottom piece.
- The body and all internal components are CNC-machined from 6061 aluminum alloy.
- Large 1.98 in (50.5mm) valve.
- The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.
- The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
- The Blow Off Valve also comes with a TiAL machined aluminum banjo-type air fitting and bolt, with over-sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.
- Color anodized aluminum options (Silver, Red, Blue, Purple, Black).
Includes:
- (1) QR Assembly with 25.4mm Return Fitting
- (1) TiAL V-Band Clamp
- (1) V-Band Weld Flange
- (1) TiAL Air Fitting
v(1) High Pressure O-Ring
