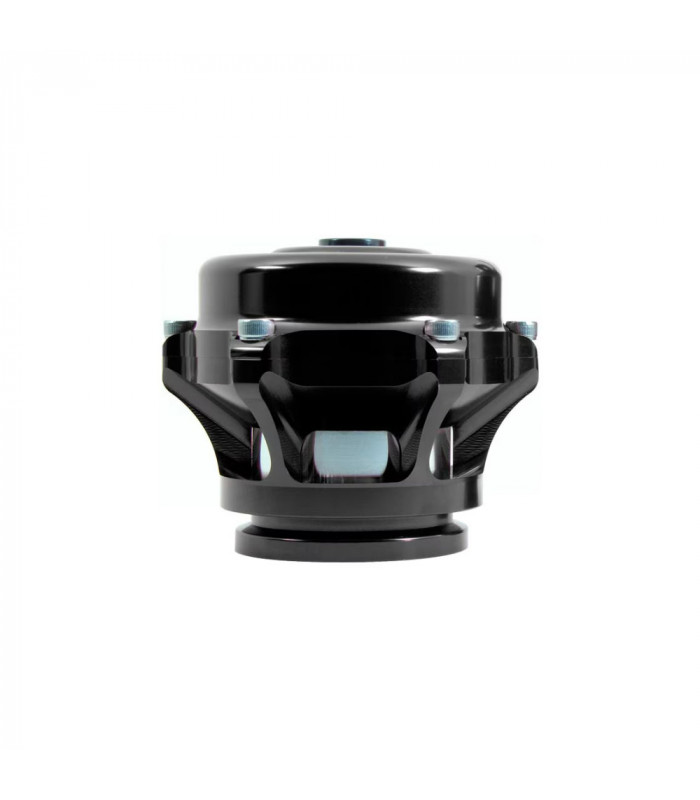

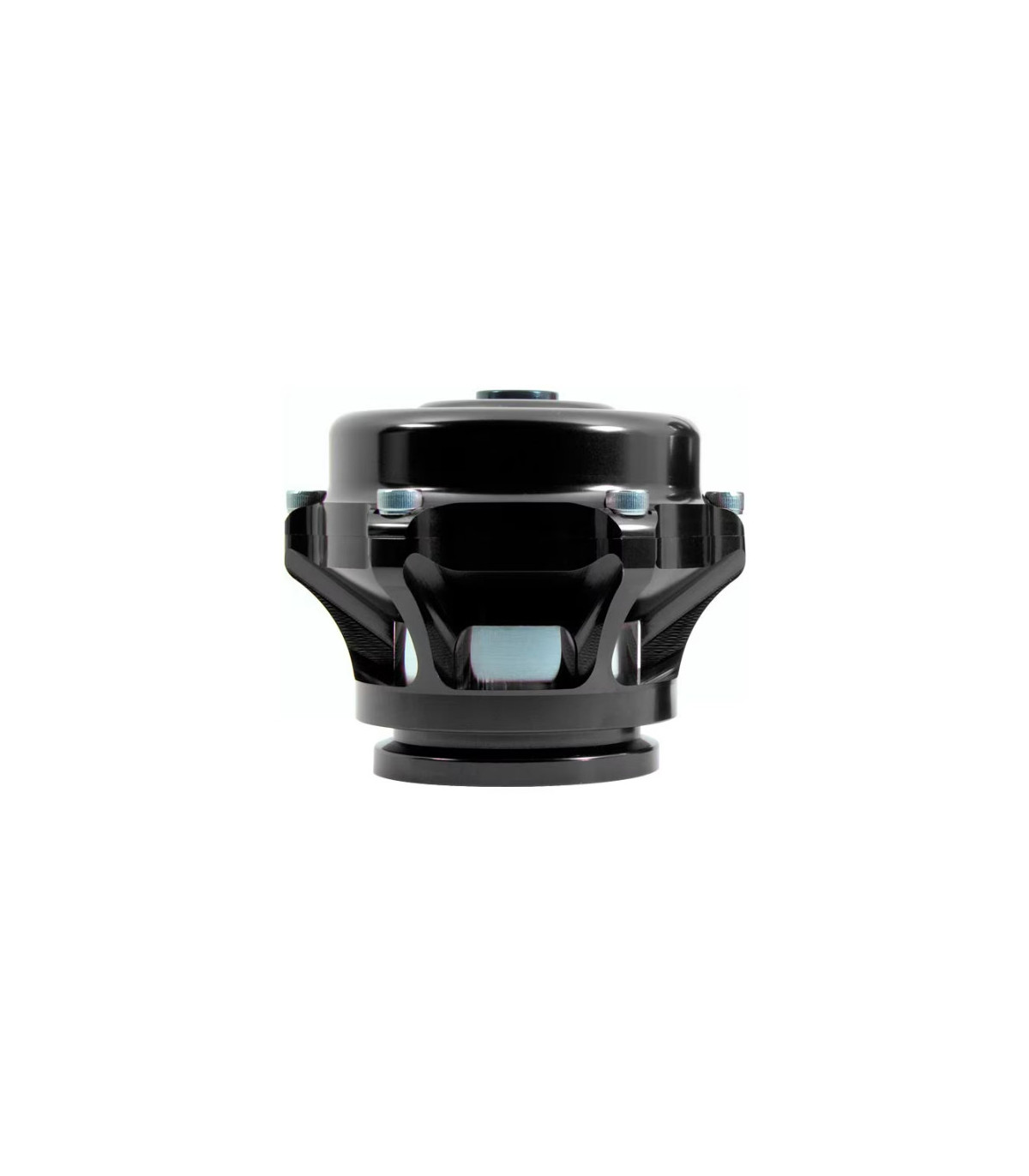

TiAL Sport Q BOV 10 PSI Spring

Genuine TiAL Sport Q BOV is the first revision of the original TiAL blow off valve. The Q bolts up to any standard TiAL flange, no re-welding. This is the highest flowing BOV on the market and is offered with a variety of springs for different vacuum levels and a special spring specifically for supercharged vehicles. This TiAL BOV is available in all 5 colors- silver, red, blue, purple and black.

Includes:

(1) Q Assembly
(1) TiAL V-Band Clamp
(1) Aluminum V-Band Weld Flange (Stainless steel & Mild Steel available)
(1) TiAL Air Fitting
(1) High Pressure O-Ring

Specs & Features:

• The body and all internal components are CNC-machined from 6061 aluminum alloy.
• Features a large 1.98" (50.5mm) valve.
• The V-Band aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.
• The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
• Includes a TiAL machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.
• Includes a weld base mounting flange (Aluminum, Mild Steel or Stainless Steel).
• 6061 aluminum allows the housing to be anodized with a selection of colors (Silver, Red, Blue, Purple, Black).
• Flows a staggering 60% more than the original design - that means 60% more air is blown off per cycle! This is the highest flowing BOV on the market.
• A single Q BOV can support up to 1800 HP.
