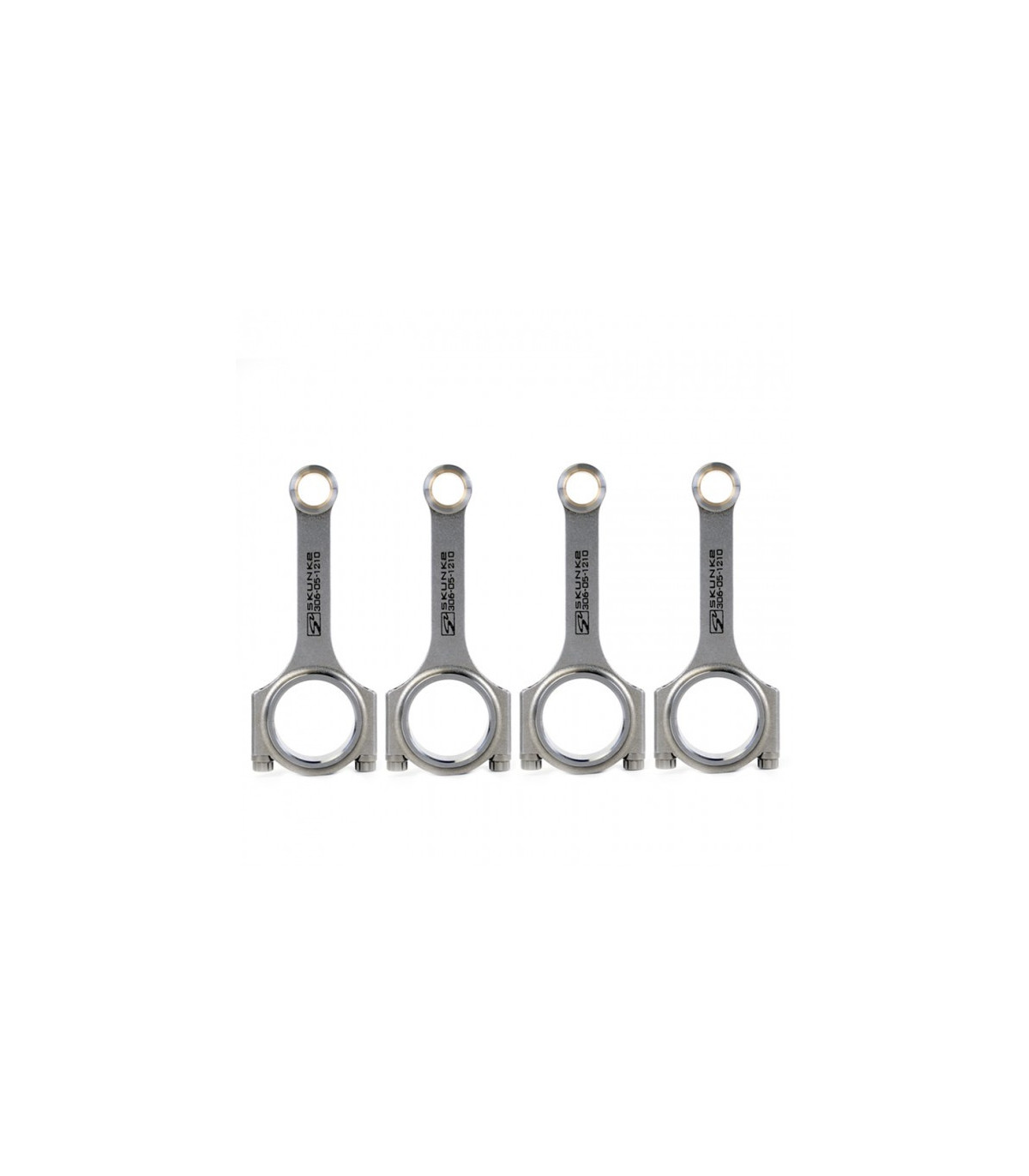

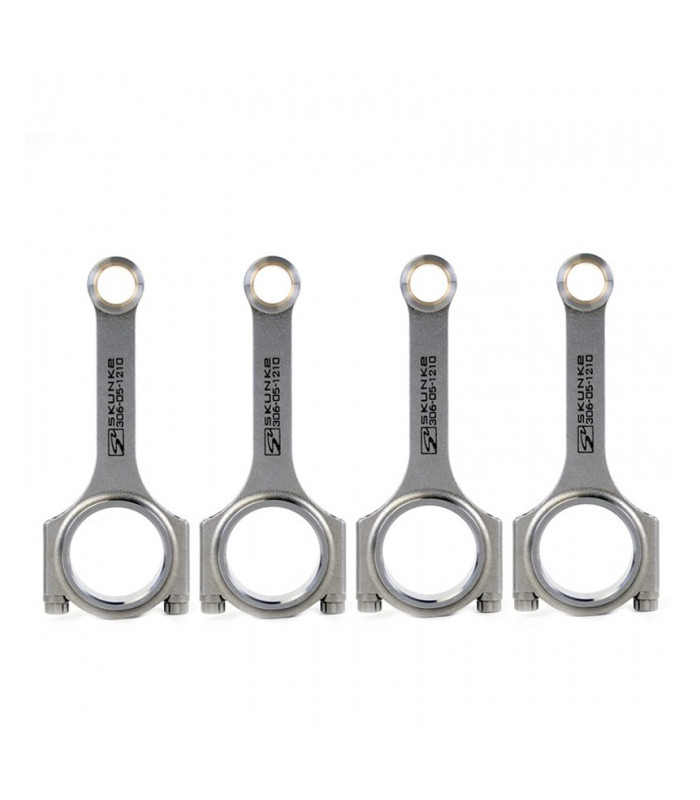

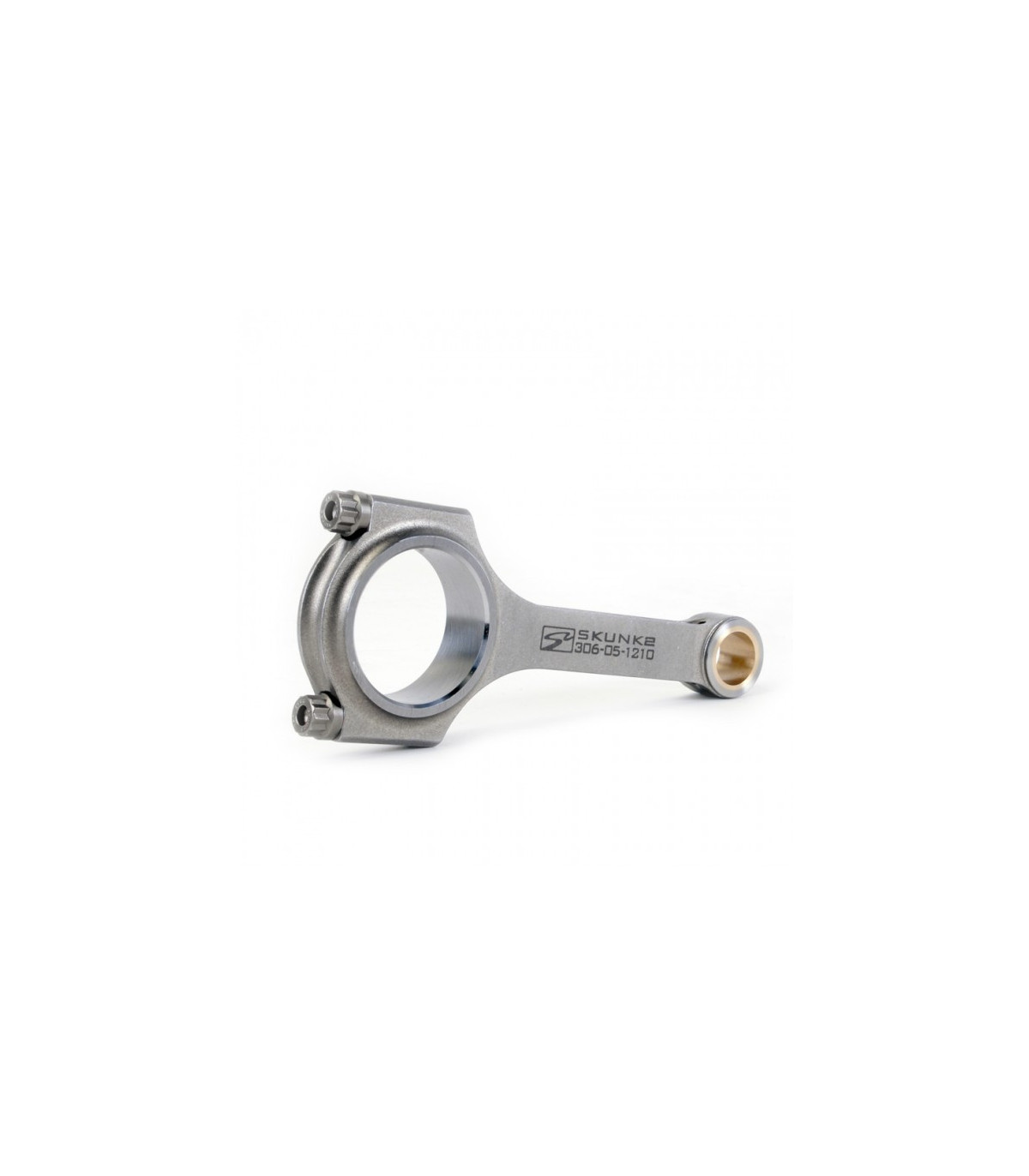

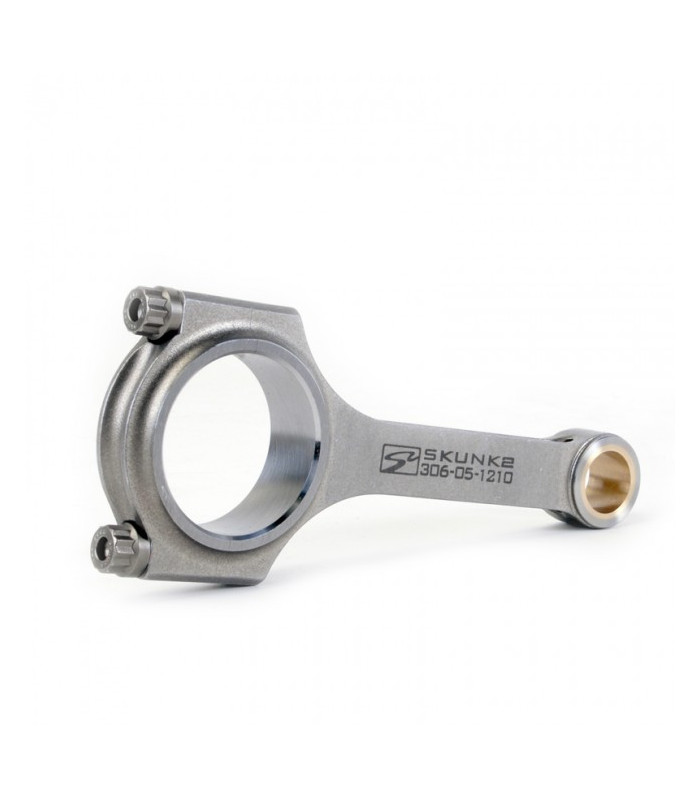

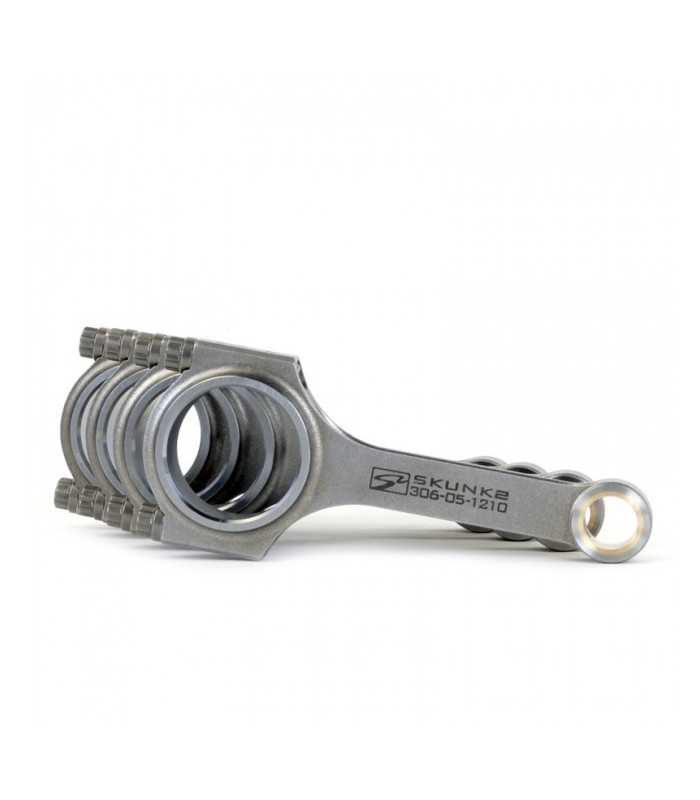

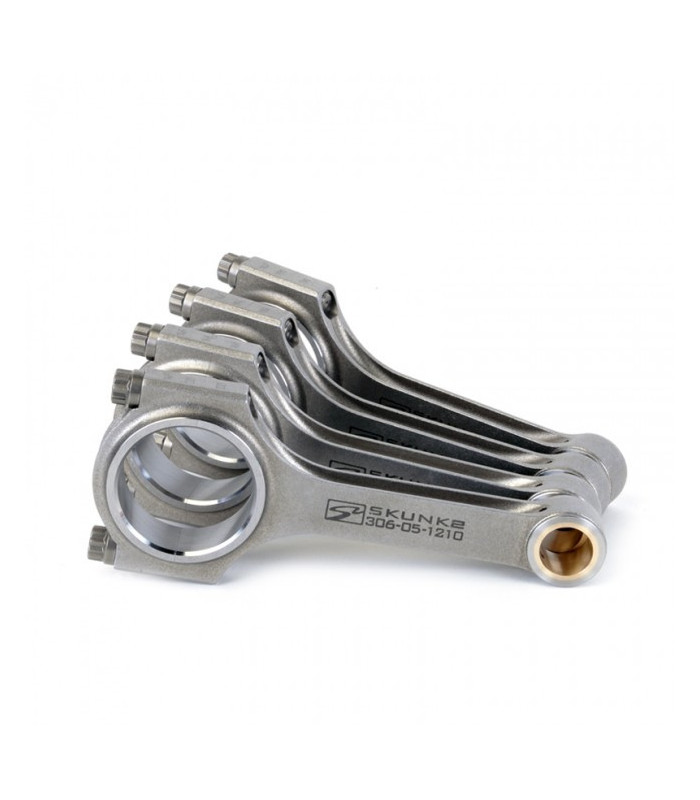

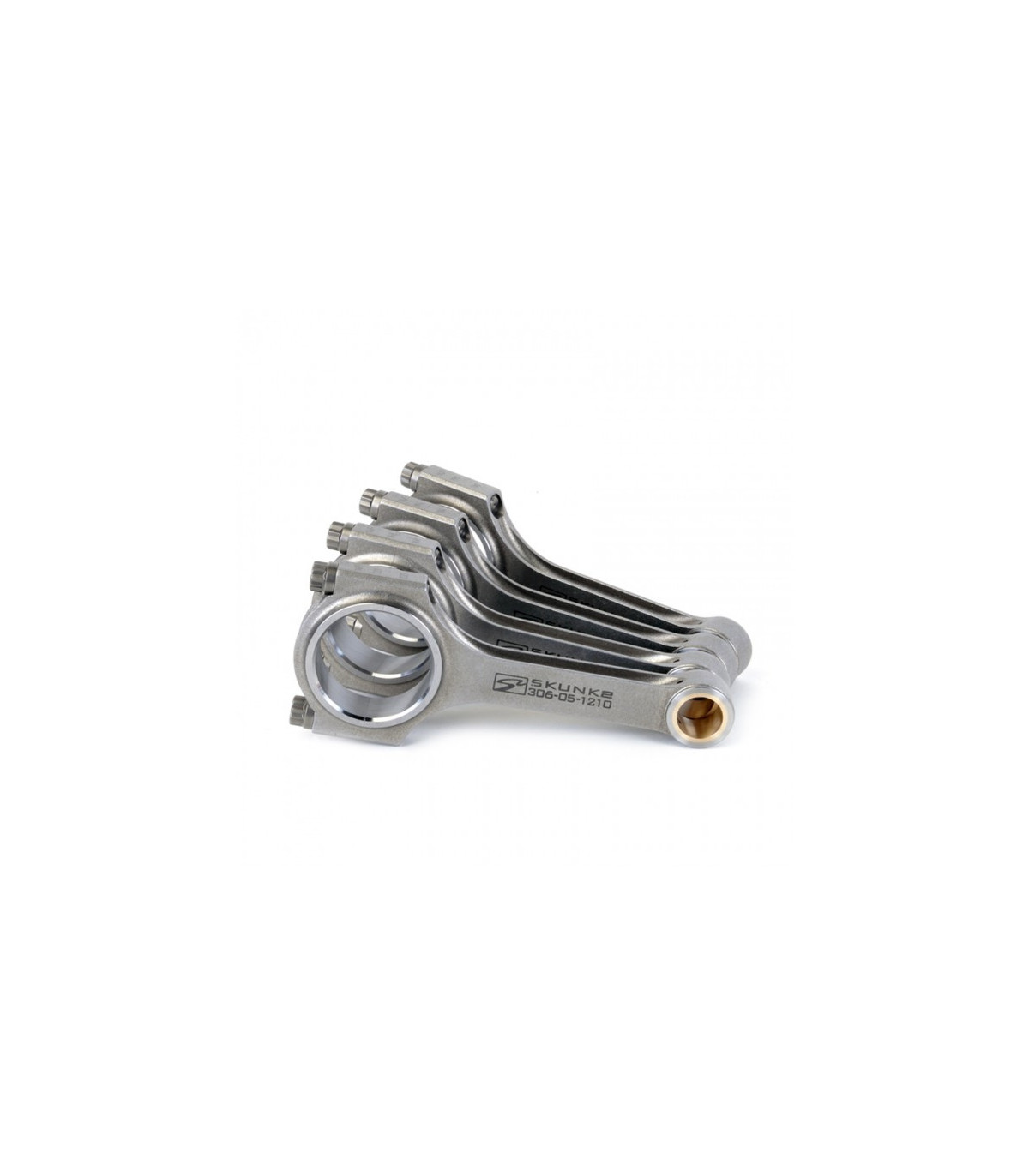

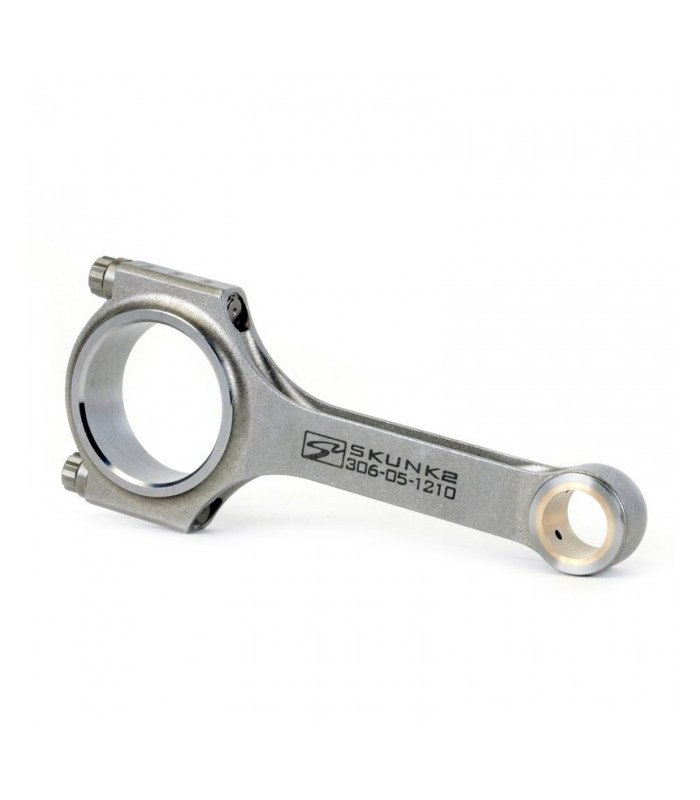

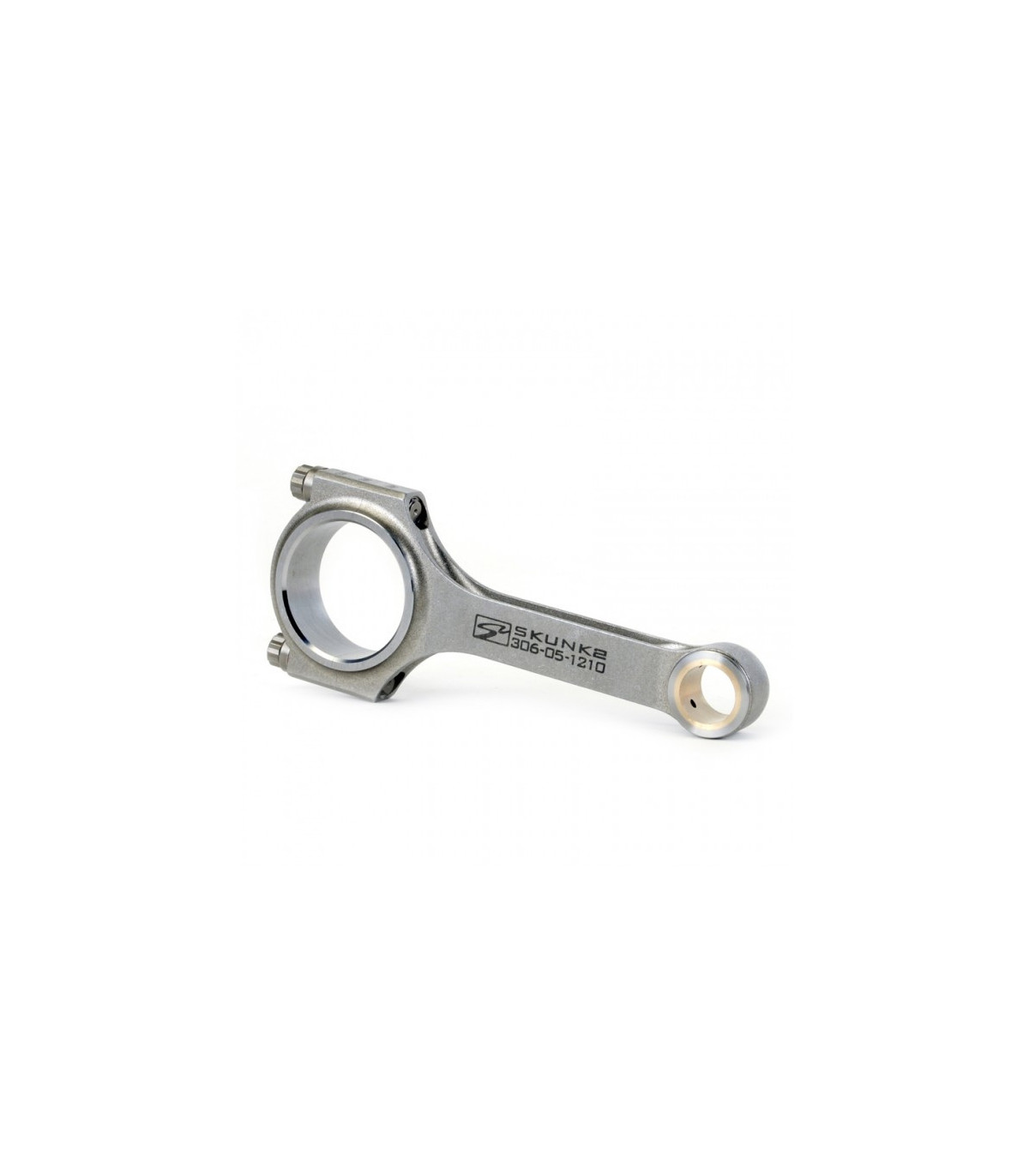

Skunk2 Alpha Lite Series Honda D16/ZC Connecting Rods

Lite Alpha Series Connecting Rod for Honda's SOHC D16A and ZC engines

The Alpha Lite rod is made for lower horsepower applications were maximum effort is not required. Alpha Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. The D Series Lite Rods were designed for the Naturally Aspirated or Low Boost Turbo build and are rated to withstand up to 450+ hp all while maintaining the weight reduction.

Skunk2 Alpha Series Rods feature an H-Beam design that is precision CNC machined from high-strength aircraft-grade 4340 alloy steel forgings that are then heat treated, tempered, and shot peen stress relieved. Skunk2 Alpha rods come with bronze wrist pin bushings and feature forced pin oiling. Each rod incorporates ARP2000 fasteners rated at over 220,000psi.

Features:

Manufactured from 4340 Chromoly Steel
Narrow (Light-Weight) Straight H-Beam Design

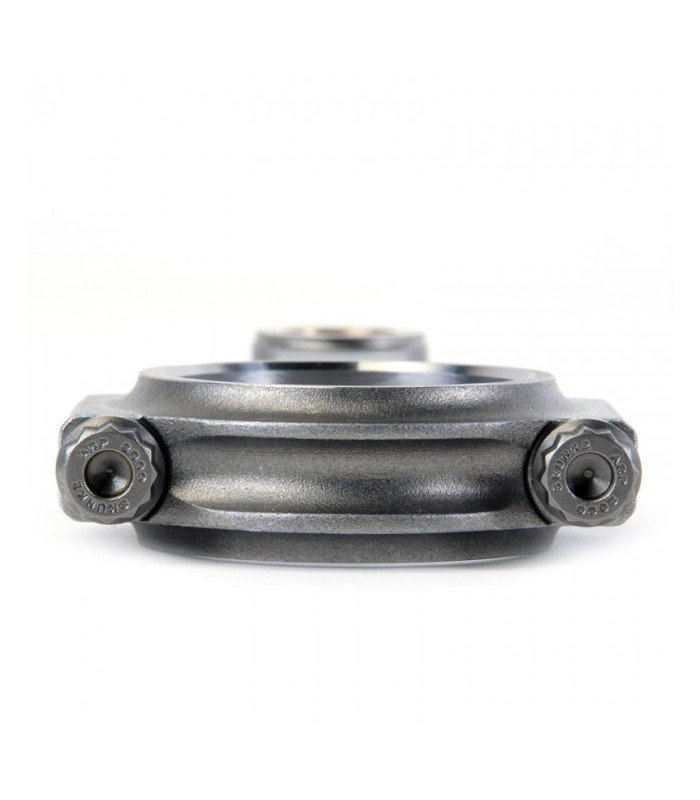

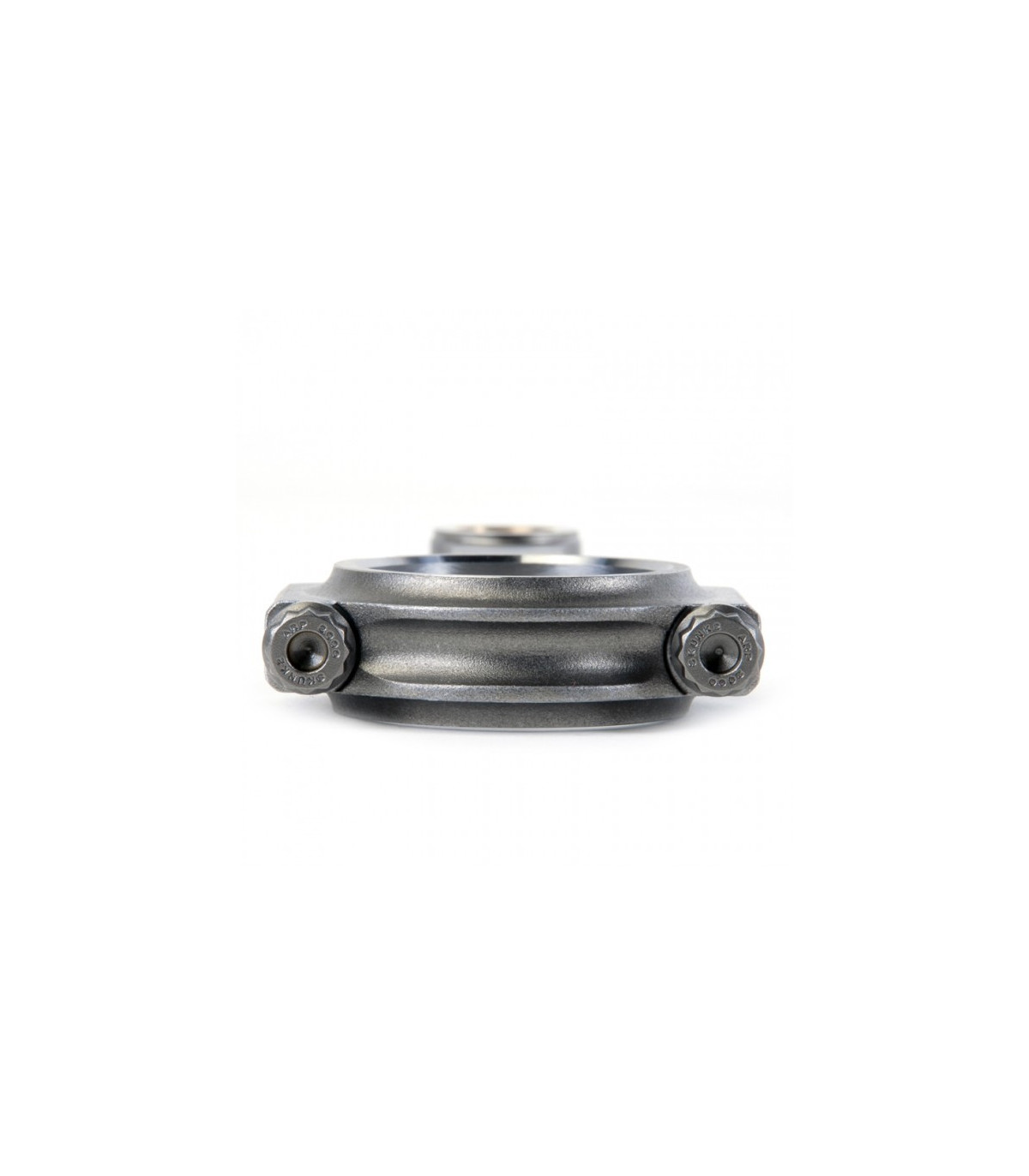

3/8" ARP® 2000 Hardware
Bronze Bushed
Shot Peened
Magnafluxed
Forced Pin Oiling
Balanced to +/- 1.5 grams

Specifications:

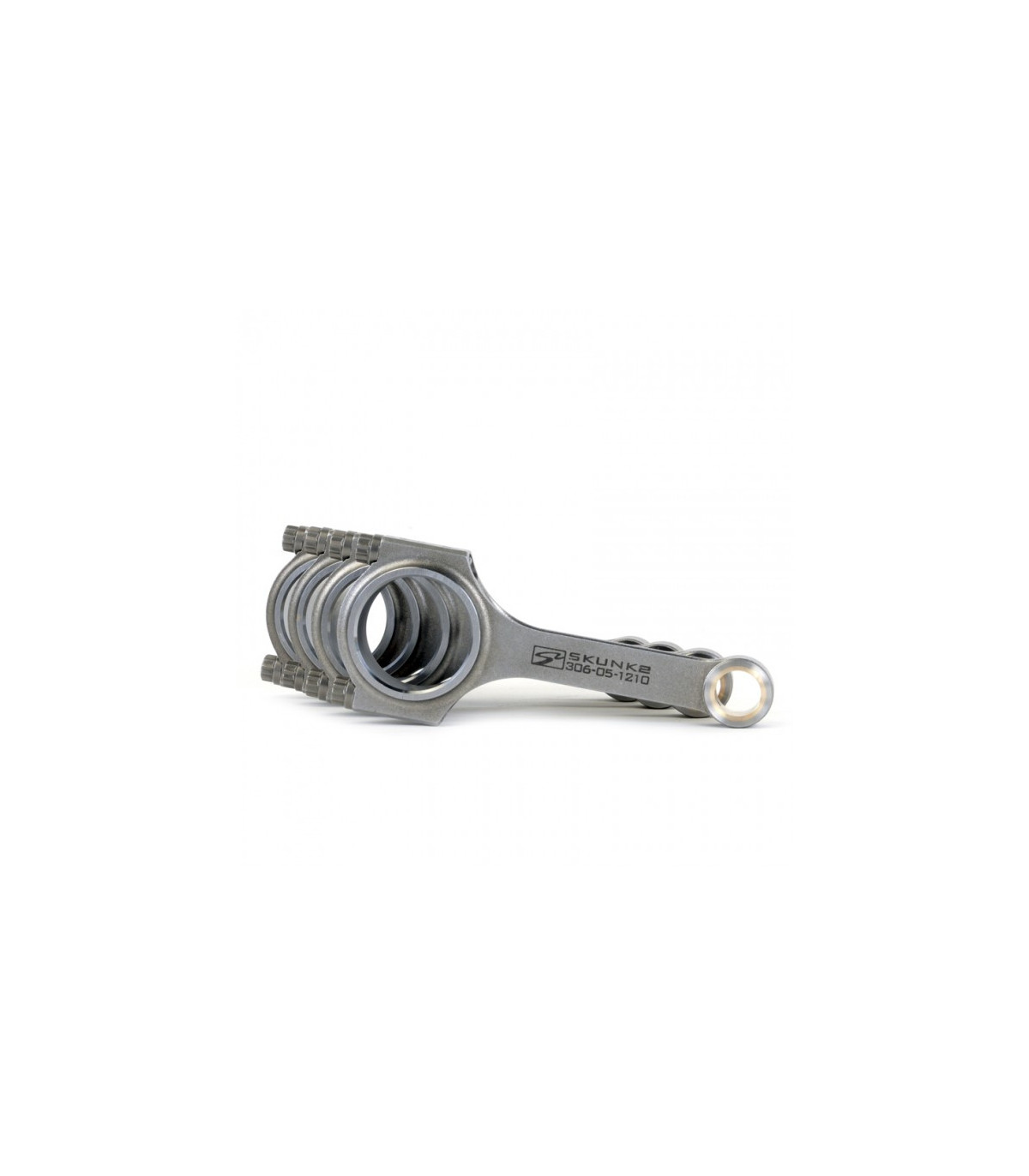

Set of: 4 rods
Weight: 448 grams
C-to-C: 137 mm
B.E. Bore: 48 mm
B.E. Width: 22.81 mm
P.E. Bore: 19.02 mm
P.E. Width: 18.19 mm

Not compatible with OEM style pistons.
Small-End Compatible w/ MOST Aftermarket Pistons w/out Machining
**Modification to the girdle and or block is necessary**
